ALL SHIP BUILDERS AND WHOLESALERS SHOULD CONTACT HOLLAND YACHT SPECIALTIES DIRECTLY FOR WHOLESALE PRICING AND POSSIBLE QUANTITY DISCOUNTS
316L Stainless Steel = A4 Stainless Steel

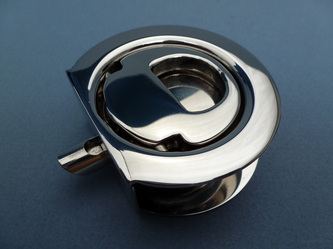

HATCH LOCK NO. 320 BC
Our #320 BC is the latest addition to the HYS line of high quality hatch locks. The entire unit is machined from a solid SST 316 bar. The body of the 320BC can be built into a deck thickness of
1 3/4"(27.50mm) and requires a 1 11/16"(42.86mm) hole. The complete unit includes a SST backing plate and is blind fastened with type 316 SST ¼-20 bolts and made watertight by one “O” ring. All parts are made of type 316 stainless except the cam which is made of type 304 stainless.
SPECIFICATIONS:
Overall dish width, including rim = 2”(50.8mm)
Handle cut from ¼” thick SST 316L plate
Handle Pin = 1/8” type 316 SST
Cam* extends 1 1/8” beyond dish edge
Finish: All visible parts are mirror polished
*Cam can be rotated in 90-degree increments, allowing hatchdog to be used on left- or right-handed cabinets, drawers and hatches
Our #320 BC is the latest addition to the HYS line of high quality hatch locks. The entire unit is machined from a solid SST 316 bar. The body of the 320BC can be built into a deck thickness of
1 3/4"(27.50mm) and requires a 1 11/16"(42.86mm) hole. The complete unit includes a SST backing plate and is blind fastened with type 316 SST ¼-20 bolts and made watertight by one “O” ring. All parts are made of type 316 stainless except the cam which is made of type 304 stainless.
SPECIFICATIONS:
Overall dish width, including rim = 2”(50.8mm)
Handle cut from ¼” thick SST 316L plate
Handle Pin = 1/8” type 316 SST
Cam* extends 1 1/8” beyond dish edge
Finish: All visible parts are mirror polished
*Cam can be rotated in 90-degree increments, allowing hatchdog to be used on left- or right-handed cabinets, drawers and hatches

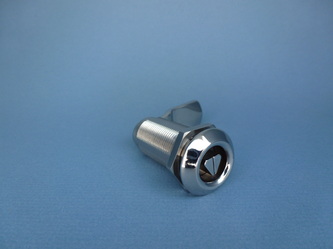

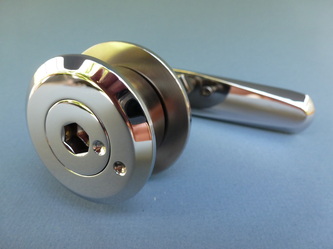

HATCH FASTENER NO. 452
Stainless Steel 316L. A high quality fastener carefully machined from a single piece of stainless steel. This fastener has been used extensively by numerous custom yacht builders in the United States.
SPECIFICATIONS:
Completely watertight by means of two O rings.
Flange diameter: 28mm (1 1/8")
Hole size required: 22mm (7/8")
Working length: 50mm (2") to 60mm (2 3/8")
This fastener requires a special key which provides added security. These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
Available in Straight Cam (50 mm Thickness) or 10 mm Offset Cam (60 mm Thickness)
Stainless Steel 316L. A high quality fastener carefully machined from a single piece of stainless steel. This fastener has been used extensively by numerous custom yacht builders in the United States.
SPECIFICATIONS:
Completely watertight by means of two O rings.
Flange diameter: 28mm (1 1/8")
Hole size required: 22mm (7/8")
Working length: 50mm (2") to 60mm (2 3/8")
This fastener requires a special key which provides added security. These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
Available in Straight Cam (50 mm Thickness) or 10 mm Offset Cam (60 mm Thickness)

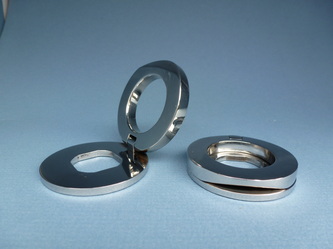

RING ASSEMBLY FOR NO. 452
This stainless steel designed ring pull was created to complement the HYS NO. 452 fastener. The bottom plate features a square hole, enabling the yard to guide the pull- direction in 90° increments providing four (4) different positions. The face sides are hand mirror polished.
SPECIFICATIONS:
Top and bottom plate:
Diameter (for both): 47mm (1 7/8”)
Thickness (top plate): 6.25mm (1/4”)
Thickness (bottom plate): 3.45mm (1/8”)
This stainless steel designed ring pull was created to complement the HYS NO. 452 fastener. The bottom plate features a square hole, enabling the yard to guide the pull- direction in 90° increments providing four (4) different positions. The face sides are hand mirror polished.
SPECIFICATIONS:
Top and bottom plate:
Diameter (for both): 47mm (1 7/8”)
Thickness (top plate): 6.25mm (1/4”)
Thickness (bottom plate): 3.45mm (1/8”)
PUSH-BUTTON LATCH (Large 45mm x 78mm = 1.77” x 3.07”)
This attractive cabinet push-button latch comes with either a mirror polished or satin-finished type 316 stainless steel ring and button. For doors over 3/4” in thickness we offer a 3/8” = 10 mm brass extension for the push-button itself as well as 1 mm thick, clear, hard plastic, filler plate that fits underneath the actual latch mechanism. Both the brass extension and the template make it possible to achieve a perfectly flush finish. For larger cabinet doors (up to six feet in length) the latch can be fitted with optional rods, etc., allowing it to engage in the middle as well as the top and bottom.
Set includes push latch mechanism and stainless ring and button.
This attractive cabinet push-button latch comes with either a mirror polished or satin-finished type 316 stainless steel ring and button. For doors over 3/4” in thickness we offer a 3/8” = 10 mm brass extension for the push-button itself as well as 1 mm thick, clear, hard plastic, filler plate that fits underneath the actual latch mechanism. Both the brass extension and the template make it possible to achieve a perfectly flush finish. For larger cabinet doors (up to six feet in length) the latch can be fitted with optional rods, etc., allowing it to engage in the middle as well as the top and bottom.
Set includes push latch mechanism and stainless ring and button.
PUSH-BUTTON LATCH (Small 35mm x 48mm = 1.38” x 1.89”)
This attractive cabinet push-button latch comes with either a mirror polished or satin-finished type 316 stainless steel ring and button. For doors 3/4” (19.05mm) in thickness only. Due to its small size, this particular push-button latch is well suited for raised panel doors. Contrary to the larger push button latches it cannot be fitted with rods.
Set includes push latch mechanism and stainless ring and button.
This attractive cabinet push-button latch comes with either a mirror polished or satin-finished type 316 stainless steel ring and button. For doors 3/4” (19.05mm) in thickness only. Due to its small size, this particular push-button latch is well suited for raised panel doors. Contrary to the larger push button latches it cannot be fitted with rods.
Set includes push latch mechanism and stainless ring and button.
HATCH LOCK NO. 499
This medium-sized heavy duty hatch lock has the following.
SPECIFICATIONS:
Blind fastened with either SST screws or bolts and made watertight by two “O” rings, it requires a 2” (50.80mm) hole and can accommodate a deck thickness of 2” (50.80mm). All parts are made of type 316 stainless steel, including nuts and bolts.
FEATURES:
Overall dish width, including rim = 2 7/8” (73.02mm)
Handle cut from 3/8” (9.52mm) thick SST 316L plate
Dish made from 5/64” (2mm) SST 316L plate
Handle pin is 5/32” (4mm) type 316 SST
Cam extends 1 1/6” (27mm) beyond dish edge
Mirror-polished finish on all visible parts
OPTION:
2 7/8” (73.02mm) diameter stainless steel backing plate complete with pre-drilled holes available.
This medium-sized heavy duty hatch lock has the following.
SPECIFICATIONS:
Blind fastened with either SST screws or bolts and made watertight by two “O” rings, it requires a 2” (50.80mm) hole and can accommodate a deck thickness of 2” (50.80mm). All parts are made of type 316 stainless steel, including nuts and bolts.
FEATURES:
Overall dish width, including rim = 2 7/8” (73.02mm)
Handle cut from 3/8” (9.52mm) thick SST 316L plate
Dish made from 5/64” (2mm) SST 316L plate
Handle pin is 5/32” (4mm) type 316 SST
Cam extends 1 1/6” (27mm) beyond dish edge
Mirror-polished finish on all visible parts
OPTION:
2 7/8” (73.02mm) diameter stainless steel backing plate complete with pre-drilled holes available.
EURO-STYLED HATCH LOCK NO. 598
This heavy duty, beautifully-styled hatch lock is blind fastened with SST screw/bolts and made watertight by an “O” ring. It requires a 3” (76.20mm) hole and can accommodate a hull thickness of 2 ½” (63.50mm) All parts are made of type 316 SST including nuts and bolts.
SPECIFICATIONS:
Overall dish width, including rim = 4” (101.60mm)
Bolt = ½” (12.7mm)
Dish made from 0.1” = 2 ½ mm thick plate
Handle and handle body cut from 3/8” (9.52mm) thick plate
Cam length from center of bolt is 3” (76.20mm)
Finish = All visible parts mirror-polished
This heavy duty, beautifully-styled hatch lock is blind fastened with SST screw/bolts and made watertight by an “O” ring. It requires a 3” (76.20mm) hole and can accommodate a hull thickness of 2 ½” (63.50mm) All parts are made of type 316 SST including nuts and bolts.
SPECIFICATIONS:
Overall dish width, including rim = 4” (101.60mm)
Bolt = ½” (12.7mm)
Dish made from 0.1” = 2 ½ mm thick plate
Handle and handle body cut from 3/8” (9.52mm) thick plate
Cam length from center of bolt is 3” (76.20mm)
Finish = All visible parts mirror-polished
HEAVY DUTY HINGE NO. 603
This heavy duty hinge was specifically designed for heavy/large hatches, transom doors or side-boarding gates. Cut from 1/2" (12.5mm) SST 316L plate for the hinge body and 14 gauge (0.071" = 1.8mm) SST 316L sheet for the cover plates.
This heavy duty hinge has a 1/4" (6.35mm) diameter hinge-pin that turns in machined Delrin bearings. This hinge may be fastened with either machine screws or wood screws. The cover plate pins press-fit into Tygon tubing, which is then recessed into the hinge body.
DIMENSIONS:
4 7/16” (113mm) x 2 ¾” (70mm)
Top of hinge body milled flat
Top of cover plates mirror polished
This heavy duty hinge was specifically designed for heavy/large hatches, transom doors or side-boarding gates. Cut from 1/2" (12.5mm) SST 316L plate for the hinge body and 14 gauge (0.071" = 1.8mm) SST 316L sheet for the cover plates.
This heavy duty hinge has a 1/4" (6.35mm) diameter hinge-pin that turns in machined Delrin bearings. This hinge may be fastened with either machine screws or wood screws. The cover plate pins press-fit into Tygon tubing, which is then recessed into the hinge body.
DIMENSIONS:
4 7/16” (113mm) x 2 ¾” (70mm)
Top of hinge body milled flat
Top of cover plates mirror polished
HATCH FASTENER NO. 605
This fastener has been used by one of Germany’s top custom yacht builders. A high quality fastener carefully machined from a single piece of stainless steel Stainless Steel 316L marine grade with security features (special hex key and unique spring-loaded action) Unlike most fasteners, this hatch fastener is fitted with a SST spring which allows constant pressure on the cam To turn the spring-loaded shaft: depress shaft and turn in 90° increments The unit includes a threaded backing nut.
SPECIFICATIONS:
Completely watertight by means of one O ring
Flange diameter: 40mm (1 9/16")
Hole size required: 24.8mm (1")
Working length: 19mm (3/4")
These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
The unit is supplied with a straight cam ranging from 1 1/2”- 2”. When ordering please specify length.
This fastener has been used by one of Germany’s top custom yacht builders. A high quality fastener carefully machined from a single piece of stainless steel Stainless Steel 316L marine grade with security features (special hex key and unique spring-loaded action) Unlike most fasteners, this hatch fastener is fitted with a SST spring which allows constant pressure on the cam To turn the spring-loaded shaft: depress shaft and turn in 90° increments The unit includes a threaded backing nut.
SPECIFICATIONS:
Completely watertight by means of one O ring
Flange diameter: 40mm (1 9/16")
Hole size required: 24.8mm (1")
Working length: 19mm (3/4")
These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
The unit is supplied with a straight cam ranging from 1 1/2”- 2”. When ordering please specify length.
FLUSH DECK FIXED TIE DOWN NO. 701
All stainless steel 316L, designed flush/recessed deck fixed tie down. Unlike the conventional eyebolt/deck plate tie down, this unit does not require eyebolt removal to prevent people from tripping. When combined with HYS heavy-duty ratchets, it provides a quick means of lashing down tenders, jet skies, small boats, etc. The two SST 316L- 7/16” threaded rods are threaded and welded into the 9.75mm = 3/8” thick body of the top tie-down plate. The top plate and dish are both machined down to a diameter of 101.02mm = 4” exactly. The threaded rods allow a deck thickness up to 114.25mm = 4 ½ “ and come complete with SST 316L nuts and lock washers. All face sides of the tie-down are hand mirror-polished.
All stainless steel 316L, designed flush/recessed deck fixed tie down. Unlike the conventional eyebolt/deck plate tie down, this unit does not require eyebolt removal to prevent people from tripping. When combined with HYS heavy-duty ratchets, it provides a quick means of lashing down tenders, jet skies, small boats, etc. The two SST 316L- 7/16” threaded rods are threaded and welded into the 9.75mm = 3/8” thick body of the top tie-down plate. The top plate and dish are both machined down to a diameter of 101.02mm = 4” exactly. The threaded rods allow a deck thickness up to 114.25mm = 4 ½ “ and come complete with SST 316L nuts and lock washers. All face sides of the tie-down are hand mirror-polished.
HATCH-FASTENER NO. 703
The HYS 703 Hatch Fastener is similar in design and function to the HYS 452 Hatch Fastener with the added benefit of a recessed handle. The 703 model is made from Marine grade stainless steel 316L. Like the 452 Hatch Fastener, the 703 model uses the same key locking system, which provides a sleek and functional security feature to the unit. Flush installation is standard. The main body is carefully machined from a single piece of SST bar and welded to the dish with no visible indications of welding on the inside of the dish. A milled line on the shaft triangular face shows the position of the cam at all times.
SPECIFICATIONS:
Outside diameter of dish 2 5/16” (59mm)
¼” thick handle recessed in dish
Fastening studs with threaded holes are welded to the underside of the dish as well as the main body.
Unit supplied with backing plate, gauge 1/16”(1.8mm)
Will permit deck thickness from 1 3/32” (28mm) to 2” (52mm)
When ordering, specify: Straight cam or offset (up or down) cam
DIMENSIONS:
4 7/16” (113mm) x 2 ¾” (70mm)
Top of hinge body milled flat
Top of cover plates mirror polished
The HYS 703 Hatch Fastener is similar in design and function to the HYS 452 Hatch Fastener with the added benefit of a recessed handle. The 703 model is made from Marine grade stainless steel 316L. Like the 452 Hatch Fastener, the 703 model uses the same key locking system, which provides a sleek and functional security feature to the unit. Flush installation is standard. The main body is carefully machined from a single piece of SST bar and welded to the dish with no visible indications of welding on the inside of the dish. A milled line on the shaft triangular face shows the position of the cam at all times.
SPECIFICATIONS:
Outside diameter of dish 2 5/16” (59mm)
¼” thick handle recessed in dish
Fastening studs with threaded holes are welded to the underside of the dish as well as the main body.
Unit supplied with backing plate, gauge 1/16”(1.8mm)
Will permit deck thickness from 1 3/32” (28mm) to 2” (52mm)
When ordering, specify: Straight cam or offset (up or down) cam
DIMENSIONS:
4 7/16” (113mm) x 2 ¾” (70mm)
Top of hinge body milled flat
Top of cover plates mirror polished
HATCH FASTENER NO. 711
This fastener is identical to NO. 605 with the addition of a dish and handle. Stainless Steel 316L marine grade with security features (special hex key and unique spring-loaded action). Unlike most fasteners, this hatch fastener is fitted with a SST spring which allows constant pressure on the cam
To turn spring-loaded shaft: depress shaft and turn in 90° increments. The unit includes a threaded backing nut and optional plate.
SPECIFICATIONS:
Completely watertight by means of one O ring
Dish outside diameter: 57.75mm (2 ¼”)
Dish hole size required: 43mm (1 11/16”)
Maximum deck thickness: 29mm (1 9/64")
These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
The unit is supplied with a straight cam ranging from 2”- 3”. When ordering please specify length.
This fastener is identical to NO. 605 with the addition of a dish and handle. Stainless Steel 316L marine grade with security features (special hex key and unique spring-loaded action). Unlike most fasteners, this hatch fastener is fitted with a SST spring which allows constant pressure on the cam
To turn spring-loaded shaft: depress shaft and turn in 90° increments. The unit includes a threaded backing nut and optional plate.
SPECIFICATIONS:
Completely watertight by means of one O ring
Dish outside diameter: 57.75mm (2 ¼”)
Dish hole size required: 43mm (1 11/16”)
Maximum deck thickness: 29mm (1 9/64")
These hatch fasteners are very well suited for securing bench hatches, engine hatches and outside lockers.
The unit is supplied with a straight cam ranging from 2”- 3”. When ordering please specify length.
HATCH FASTENER NO. 903
This beautifully machined compact, yet heavy duty all SST 316L hatch lock was specifically designed to seal and secure heavy engine hatches, etc. Blind fastened with three (3) 6.4mm (¼”) SST 316L socket machine screws and made water tight with two (2) O rings. Requires 39.68mm (1 9/16”) hole and can accommodate a thickness of 41.28mm (1 5/8”). The shaft is a 12.7mm (1/2”) socket machine screw. All parts including cam, nuts and shaft are 316L SST. The optional 316L SST T-handle Allen Hex Key has a 4.76mm (3/16”) bore enabling it to fit over 3.2mm (1/8”) pin in the hex head recess of the 12.7mm (½”) shaft. With each unit a 3.2mm (1/8”) pin is provided which can be easily press-fitted/glued into the hex head recess for added security at the option of the installer. Cam length is 89mm (3 ½”) and is secured to the shaft with a ½”-13 SST nut and a nylon insert ½”-13 SST lock nut. The entire unit is hand mirror polished.
This beautifully machined compact, yet heavy duty all SST 316L hatch lock was specifically designed to seal and secure heavy engine hatches, etc. Blind fastened with three (3) 6.4mm (¼”) SST 316L socket machine screws and made water tight with two (2) O rings. Requires 39.68mm (1 9/16”) hole and can accommodate a thickness of 41.28mm (1 5/8”). The shaft is a 12.7mm (1/2”) socket machine screw. All parts including cam, nuts and shaft are 316L SST. The optional 316L SST T-handle Allen Hex Key has a 4.76mm (3/16”) bore enabling it to fit over 3.2mm (1/8”) pin in the hex head recess of the 12.7mm (½”) shaft. With each unit a 3.2mm (1/8”) pin is provided which can be easily press-fitted/glued into the hex head recess for added security at the option of the installer. Cam length is 89mm (3 ½”) and is secured to the shaft with a ½”-13 SST nut and a nylon insert ½”-13 SST lock nut. The entire unit is hand mirror polished.
HEAVY DUTY HATCH PULL NO. 1103
This extra heavy duty hatch handle was designed for large heavy hatches. The 5” (128mm) diameter dish was drawn from 1/8” (3mm) thick SST 316L material. Deck recess required: 4” (101.60mm) diameter 7/16” (11.11mm) deep.
SPECIFICATIONS:
Handle: 3/8” (9.52mm) thick SST 316L Marine grade
Handle pin: 1/4” (6.35mm) diameter SST 316L
Fastening holes: Three (3) counter-sunk holes underneath handle
Complete unit: Hand/mirror-polished
This extra heavy duty hatch handle was designed for large heavy hatches. The 5” (128mm) diameter dish was drawn from 1/8” (3mm) thick SST 316L material. Deck recess required: 4” (101.60mm) diameter 7/16” (11.11mm) deep.
SPECIFICATIONS:
Handle: 3/8” (9.52mm) thick SST 316L Marine grade
Handle pin: 1/4” (6.35mm) diameter SST 316L
Fastening holes: Three (3) counter-sunk holes underneath handle
Complete unit: Hand/mirror-polished

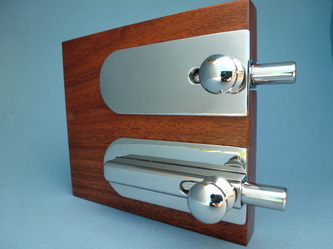

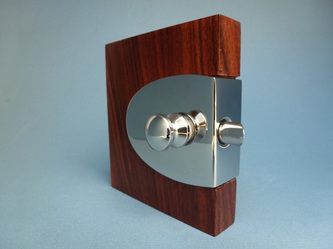

BARRELBOLT NO. 9102 ALL SST 316-FLUSH
This heavy-duty spring loaded (safety feature) flush mounting barrelbolt was specifically designed for use on side boarding gates, transom and bulwark doors. Its unique spring safety feature prevents accidental opening. The handle is flat, virtually flush, eliminating the chance of someone hitting it and causing injury. The barrelbolt comes in either right- or left-handed versions, which is a prerequisite when used as a side gate closure.
SPECIFICATIONS:
Length: 5 1/8”(130.18mm)
Width: 2”(50.80mm)
Thickness: 1/8”(3.18mm)
Barrel: ½” (12.70mm) diameter; extends: 1 1/8”(28.58mm)
Spring: SST
Angle Strike: 1 ¼”(31.75mm) x 2”(50.80mm) x 1”(25.40mm)
Built-in Depth: 1”(25.40mm)
Both barrelbolt and strike are mirror finished
This heavy-duty spring loaded (safety feature) flush mounting barrelbolt was specifically designed for use on side boarding gates, transom and bulwark doors. Its unique spring safety feature prevents accidental opening. The handle is flat, virtually flush, eliminating the chance of someone hitting it and causing injury. The barrelbolt comes in either right- or left-handed versions, which is a prerequisite when used as a side gate closure.
SPECIFICATIONS:
Length: 5 1/8”(130.18mm)
Width: 2”(50.80mm)
Thickness: 1/8”(3.18mm)
Barrel: ½” (12.70mm) diameter; extends: 1 1/8”(28.58mm)
Spring: SST
Angle Strike: 1 ¼”(31.75mm) x 2”(50.80mm) x 1”(25.40mm)
Built-in Depth: 1”(25.40mm)
Both barrelbolt and strike are mirror finished
FLUSH DECK SWIVEL TIE DOWN NO.9904
All stainless steel 316L, designed flush/recessed deck swivel tie down. Contrary to the conventional eyebolt/deck plate type tie down, this unit does not require breakdown to prevent people from tripping over the eyebolt. In addition, its free swiveling pull permits proper webbing alignment. When combined with HYS heavy-duty ratchets, it provides a quick means of lashing down tenders, jet skies, small boats, etc. Pull and body are made of ½” thick SST 316L plate with ¼” pins and ½” swivel bolt. The dish is made of heavy duty SST 316L 3mm (1/8”) material. All parts are initially electro-polished and the face sides receive an additional mirror polish. The unit comes complete with a 316L SST/nylon locknut and nylon and 316L SST 1 ¼” diameter washers. The O ring provides water tightness.
All stainless steel 316L, designed flush/recessed deck swivel tie down. Contrary to the conventional eyebolt/deck plate type tie down, this unit does not require breakdown to prevent people from tripping over the eyebolt. In addition, its free swiveling pull permits proper webbing alignment. When combined with HYS heavy-duty ratchets, it provides a quick means of lashing down tenders, jet skies, small boats, etc. Pull and body are made of ½” thick SST 316L plate with ¼” pins and ½” swivel bolt. The dish is made of heavy duty SST 316L 3mm (1/8”) material. All parts are initially electro-polished and the face sides receive an additional mirror polish. The unit comes complete with a 316L SST/nylon locknut and nylon and 316L SST 1 ¼” diameter washers. The O ring provides water tightness.

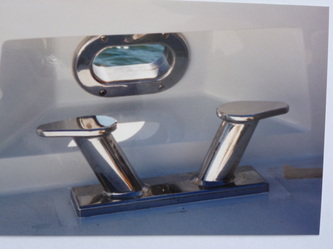

BOLLARDS (Large)
This 316L stainless steel bollard has the following measurements:
SPECIFICATIONS: (Large)
Base: 101.6mm x 343mm x 19mm (4” x 13 ½” x ¾” thick)
Height: 152.3mm (6”)
Distance between end of ears: 444.5mm (17 ½”)
Blind fastened with three (3) 16mm (5/8”) diameter 316L SST bolts
This 316L stainless steel bollard has the following measurements:
SPECIFICATIONS: (Large)
Base: 101.6mm x 343mm x 19mm (4” x 13 ½” x ¾” thick)
Height: 152.3mm (6”)
Distance between end of ears: 444.5mm (17 ½”)
Blind fastened with three (3) 16mm (5/8”) diameter 316L SST bolts
BOLLARDS (Small)
This 316L stainless steel bollard has the following measurements:
SPECIFICATIONS: (Small)
Base: 81mm x 202mm x 8mm (3 3/16" x 7 15/16" x 5/16" thick)
Height: 100mm (3 5/16")
Distance between end of ears: 273mm (10 3/4")
This 316L stainless steel bollard has the following measurements:
SPECIFICATIONS: (Small)
Base: 81mm x 202mm x 8mm (3 3/16" x 7 15/16" x 5/16" thick)
Height: 100mm (3 5/16")
Distance between end of ears: 273mm (10 3/4")
Hawse Ring
This finely cast 316L stainless steel hawse ring has the following measurements:
SPECIFICATIONS:
Outside ring size: 235mm (9 ¼”)
Build-in size (length x width): 172mm (6 ¾”) x 88.0mm (3 7/16”)
Build-in height: 30.0mm (1 3/16”)
Material thickness of outside ring: 11.70mm (30/64”)
Thickness of recessed lip: 7.5mm (19.64”)
The hawse ring comes with or without four (4) counter-sunk holes. The face surface is hand mirror polished.
This finely cast 316L stainless steel hawse ring has the following measurements:
SPECIFICATIONS:
Outside ring size: 235mm (9 ¼”)
Build-in size (length x width): 172mm (6 ¾”) x 88.0mm (3 7/16”)
Build-in height: 30.0mm (1 3/16”)
Material thickness of outside ring: 11.70mm (30/64”)
Thickness of recessed lip: 7.5mm (19.64”)
The hawse ring comes with or without four (4) counter-sunk holes. The face surface is hand mirror polished.
THE POOL® ANCHOR
Authentic fully balanced pool anchor "Type-N."
48kg = 106 lbs.
Anchors are an essential part of the safety equipment on any vessel. Ensuring that each ship has an anchor of the proper type, design and size is fundamental.
In the early 1960’s the POOL®-N anchor was created with the POOL®-TW anchor coming into existence ten years later. POOL® anchors are used on commercial vessels, e.g., cruise ships, ferries, container ships, barges, tugboats, and freighters, as well as recreational yachts. The major boat builders in the Netherlands, including FEADSHIP, use the POOL® type anchors as standard equipment. The POOL® anchor is very popular in Western Europe and is rapidly gaining recognition in the United States and Canada.
POOL® anchors differ from most conventional anchors in that they are stockless. POOL® anchors are welded out of high-tensile steel plates and because of this, can be easily repaired.
For the same holding-power, a POOL® anchor has approximately twenty-five percent (25%) less weight than a conventional anchor. Due to its high-holding power capability, the POOL® anchor is classified as a high-holding power anchor; more commonly referred to as an H.H.P. anchor in the boating industry.
POOL® anchors are very attractive and can fit easily into a bow pocket. Most POOL® anchors come fully balanced, therefore the possibility of damage to the hull is significantly reduced.
Various versions of POOL® anchors have been manufactured for the Royal Dutch Navy, ships in Greece, Germany, Canada and numerous cruise ships, such as the Royal Viking and many ships owned by The Royal Caribbean Cruise Lines.
POOL® anchors are manufactured in the Netherlands. The design and fabrication process used for all POOL® anchors is approved by all major classifications societies such as:
American Bureau of Shipping (ABS)
Lloyds of London
German Lloyds
Bureau Veritas (French)
Det Norske Veritas (Norwegian)
NKK (Japanese)
If so desired, POOL® anchors can be delivered with classification society certificates.
Prior to leaving the factory, each anchor is bench-tested. A certificate to that effect is supplied with each anchor.
The smallest POOL® anchors currently being manufactured are 8 kg (17.6 lbs.) with the largest POOL® anchors being manufactured, to date, weighing 23.5 metric tons. POOL® anchors may be used on boats as small as thirty feet in length as well as the super mega yachts.
The following is a partial list of boat builders in the United States and Canada that have used and/or are currently using the POOL® anchors on their yachts:
Admiral Marine
Broward Marine, Inc.
Burger Boat Company
Christensen M.Y. Company
Crescent Beach Boatbuilders, B.C.
Delta Marine
Denison Yachts
Derecktor-Gunnell
Hatteras Custom Yachts
Hatteras Yachts
Knight and Carver
Nordland Custom Boat Company
Palmer Johnson
Poole Boat Company
Swiftship, Inc.
The Hinckley Company
Trinity Yachts
Westport Marine
Authentic fully balanced pool anchor "Type-N."
48kg = 106 lbs.
Anchors are an essential part of the safety equipment on any vessel. Ensuring that each ship has an anchor of the proper type, design and size is fundamental.
In the early 1960’s the POOL®-N anchor was created with the POOL®-TW anchor coming into existence ten years later. POOL® anchors are used on commercial vessels, e.g., cruise ships, ferries, container ships, barges, tugboats, and freighters, as well as recreational yachts. The major boat builders in the Netherlands, including FEADSHIP, use the POOL® type anchors as standard equipment. The POOL® anchor is very popular in Western Europe and is rapidly gaining recognition in the United States and Canada.
POOL® anchors differ from most conventional anchors in that they are stockless. POOL® anchors are welded out of high-tensile steel plates and because of this, can be easily repaired.
For the same holding-power, a POOL® anchor has approximately twenty-five percent (25%) less weight than a conventional anchor. Due to its high-holding power capability, the POOL® anchor is classified as a high-holding power anchor; more commonly referred to as an H.H.P. anchor in the boating industry.
POOL® anchors are very attractive and can fit easily into a bow pocket. Most POOL® anchors come fully balanced, therefore the possibility of damage to the hull is significantly reduced.
Various versions of POOL® anchors have been manufactured for the Royal Dutch Navy, ships in Greece, Germany, Canada and numerous cruise ships, such as the Royal Viking and many ships owned by The Royal Caribbean Cruise Lines.
POOL® anchors are manufactured in the Netherlands. The design and fabrication process used for all POOL® anchors is approved by all major classifications societies such as:
American Bureau of Shipping (ABS)
Lloyds of London
German Lloyds
Bureau Veritas (French)
Det Norske Veritas (Norwegian)
NKK (Japanese)
If so desired, POOL® anchors can be delivered with classification society certificates.
Prior to leaving the factory, each anchor is bench-tested. A certificate to that effect is supplied with each anchor.
The smallest POOL® anchors currently being manufactured are 8 kg (17.6 lbs.) with the largest POOL® anchors being manufactured, to date, weighing 23.5 metric tons. POOL® anchors may be used on boats as small as thirty feet in length as well as the super mega yachts.
The following is a partial list of boat builders in the United States and Canada that have used and/or are currently using the POOL® anchors on their yachts:
Admiral Marine
Broward Marine, Inc.
Burger Boat Company
Christensen M.Y. Company
Crescent Beach Boatbuilders, B.C.
Delta Marine
Denison Yachts
Derecktor-Gunnell
Hatteras Custom Yachts
Hatteras Yachts
Knight and Carver
Nordland Custom Boat Company
Palmer Johnson
Poole Boat Company
Swiftship, Inc.
The Hinckley Company
Trinity Yachts
Westport Marine
